System Parameters:
| Item | Specification |
| Material | Zinc Alloy |
| Surface Treatment | black powder / Chrome coating |
| Item including | lock and 2pcs Iron keys |
| Weight | 343g |
| Size | 110*50*52mm |
| lever length | 30-45 |
| Panel thickness | 1-5 mm |
| MOQ | 500pcs |
| Color | Bright/ Black |
| Type | Cabinet Compression Latch |
| Packing | Poly Bag |
| Sample | Available |
Description:
· Low profile when latched
· Easy grip adjustment
· Push button actuation
· 445 N maximum static load
· sealing is achieved by using optional flange gasket and sealing the mounting screw threads

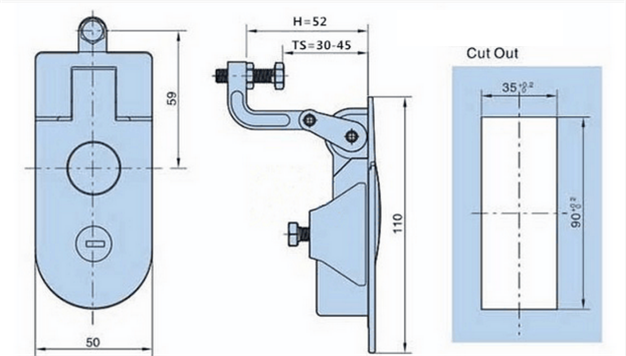

Lock Size:
Application:
Cabinet Compression Latch is used for Electric panels, machinery covers, railway applications, construction equipment. Automotive /Trucks
Packing:
Zinc Alloy Sealed Lever Cabinet Compression Latch is based on common foreign trade packaging.
1. 5 piece inner box. 50pcs / carton.
2. Customized packing is available.
Video:
· Low profile when latched
· Easy grip adjustment
· Push button actuation
· 445 N maximum static load
· sealing is achieved by using optional flange gasket and sealing the mounting screw threads
Lock Size:
Cabinet Compression Latch is used for Electric panels, machinery covers, railway applications, construction equipment. Automotive /Trucks
Zinc Alloy Sealed Lever Cabinet Compression Latch is based on common foreign trade packaging.
1. 5 piece inner box. 50pcs / carton.
2. Customized packing is available.
