System Parameters:
Specification:
| Item | Specification |
| Product name | Cabinet 3 Digital password Door Combination Cam Lock |
| Material | Zinc Alloy |
| Wheel Material | zinc alloy |
| Size | 31.8mm*31.8mm |
| Weight | 90.7g |
| Diameter for | 31mm |
| MOQ | 500pcs |
| Number | 3 digit |
| Color | Sliver |
| Type | Combination Cam Lock |
| Packing | Poly bag |
| Suitable for | Door Lock |
| Sample | Available |
Description:
Easy installing:
--Replace any diameter of 3/4” cam locks with key open
--Dials can turn clockwise and anticlockwise
Set your own combination
--the combination can be changed instantly
--no need special tools
1000 different combinations
To set the combination,or to change your own combination,just need few seconds with pressing the button.
How to set your own combination:
. You have to reset your own combinations with the lock open(default code:0-0-0)
. combination reset point is at the small hole under the outer angular surface,turn the head until you can see the button inside.
. use a small pin-shape stick to push the button and hold it.
. turn the dials to your desired combination and align the number to the indicator line
. release the button and your combination is set.
. to lock: turn to locked position and scramble one or all dials and it’s locked
. To open,just turn the dials to the desired combination.

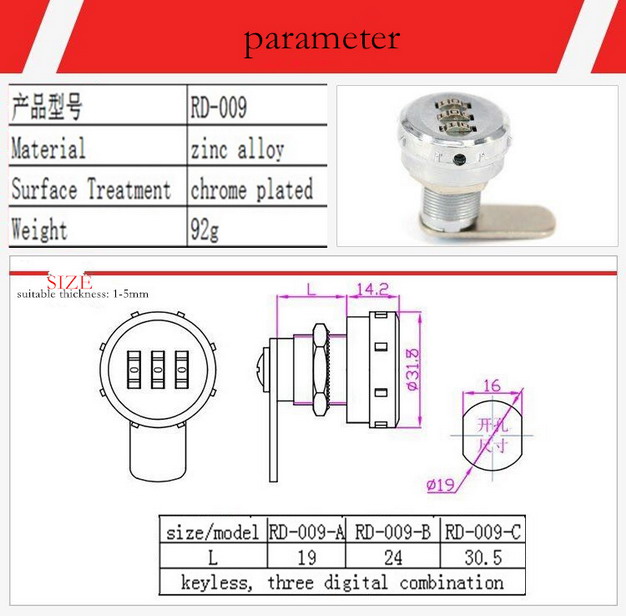

Lock Drawing:
Application:
password Door Combination Cam Lock is suitable for outdoor and indoor, such as cabinets, cash registers, mailbox, moneybox, locker, drawer, and other steel office furniture.
Packing:
Cabinet 3 Digital password Door Combination Cam Lock is based on common foreign trade packaging.
1. One piece inner box. 100pcs / carton.
2. Customized packing is available.
Video:
Easy installing:
--Replace any diameter of 3/4” cam locks with key open
--Dials can turn clockwise and anticlockwise
Set your own combination
--the combination can be changed instantly
--no need special tools
1000 different combinations
To set the combination,or to change your own combination,just need few seconds with pressing the button.
How to set your own combination:
. You have to reset your own combinations with the lock open(default code:0-0-0)
. combination reset point is at the small hole under the outer angular surface,turn the head until you can see the button inside.
. use a small pin-shape stick to push the button and hold it.
. turn the dials to your desired combination and align the number to the indicator line
. release the button and your combination is set.
. to lock: turn to locked position and scramble one or all dials and it’s locked
. To open,just turn the dials to the desired combination.
Lock Drawing:
password Door Combination Cam Lock is suitable for outdoor and indoor, such as cabinets, cash registers, mailbox, moneybox, locker, drawer, and other steel office furniture.
Cabinet 3 Digital password Door Combination Cam Lock is based on common foreign trade packaging.
1. One piece inner box. 100pcs / carton.
2. Customized packing is available.
